Sanko Technologies Sdn Bhd, founded in 2019 and headquartered in Penang, Malaysia, is a manufacturer and provider of RF and wireless communication testing instruments.
AXiotronix is the testing and measurement instrument distributor for SANKO in Taiwan.
- MODULAR VECTOR NETWORK ANALYZER
- Handheld Signal Generator
- Handheld Spectrum Analyzer
- Handheld Cable and Antenna analyzer

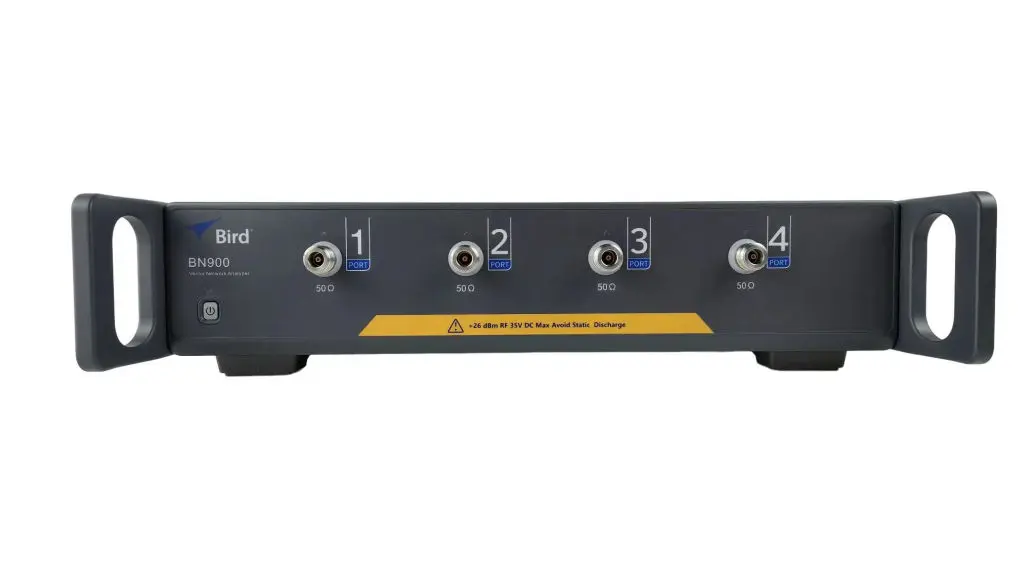

Frequency range
300KHz-6.5GHz/8.5GHz
Output Power Range
-50dBm to +10dBm
Measurement parameters
S11 to S44
Measurement point per sweep
2 to 20001
Dynamic Range
>125dB @ IFBW=10Hz，typ. 130dB
Low trace noise
2mdB rms @ IFBW=3 kHz
Measurement speed
42µs/point @ IFBW=500kHz
Support
Standard VISA Protocol

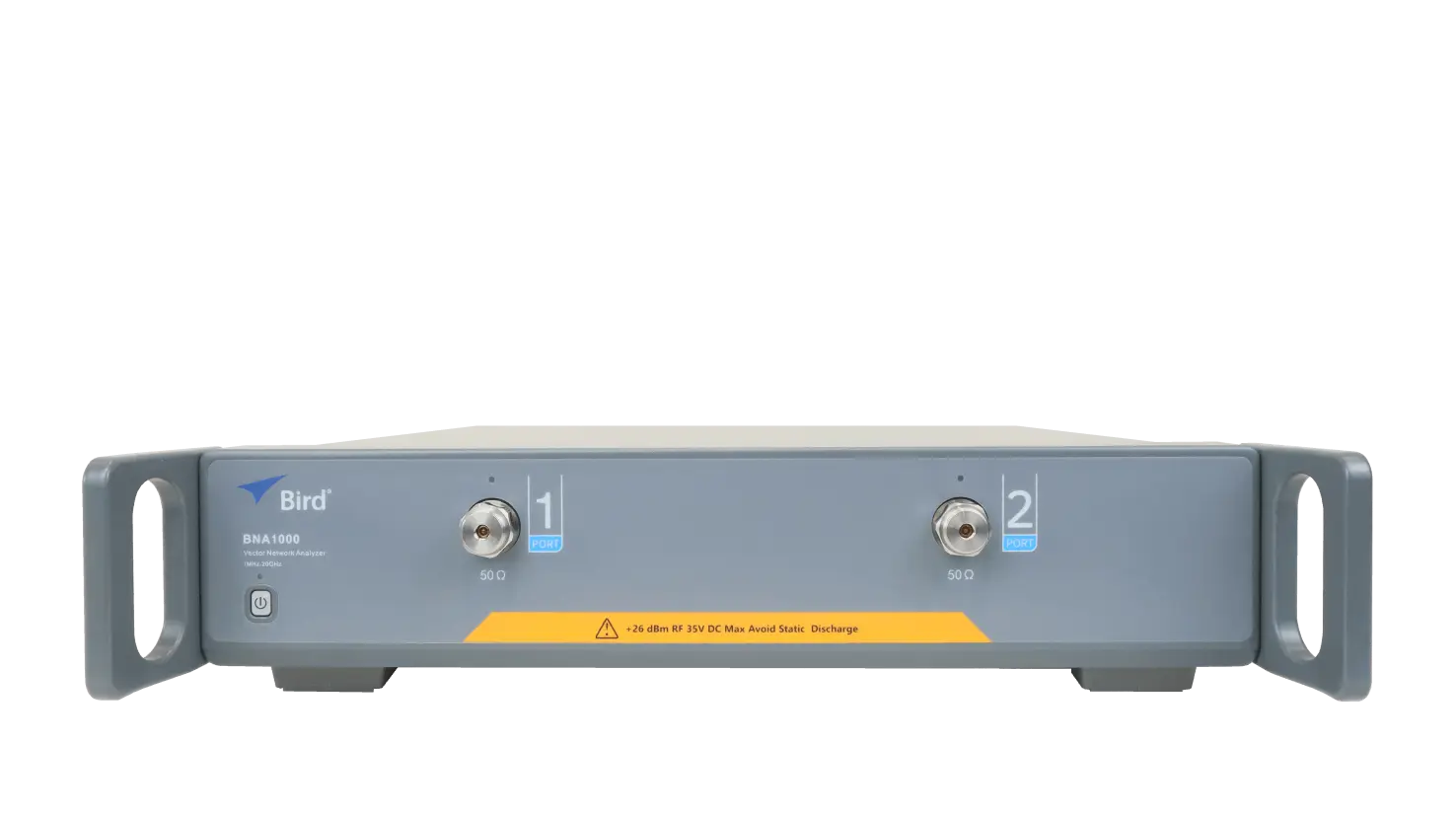

Frequency Range
1 MHz to 20 GHz
Output Power Range
-30 dBm to +10d Bm
Measurement parameters
S11 to S22
Measurement point per sweep
2 to 20001
Dynamic Range
125 dB, typ. (1 MHz to 8 GHz)
120 dB, typ. (8 MHz to 12 GHz)
118 dB, typ.129dB (12 GHz to 18 GHz)
115 dB, typ.128dB (18 GHz to 20 GHz)
Low Trace Noise
8mdB rms @ IFBW=3 kHz
Measurement Speed
70 μs/point @ IFBW=500kHz
Support
Standard VISA Protocol

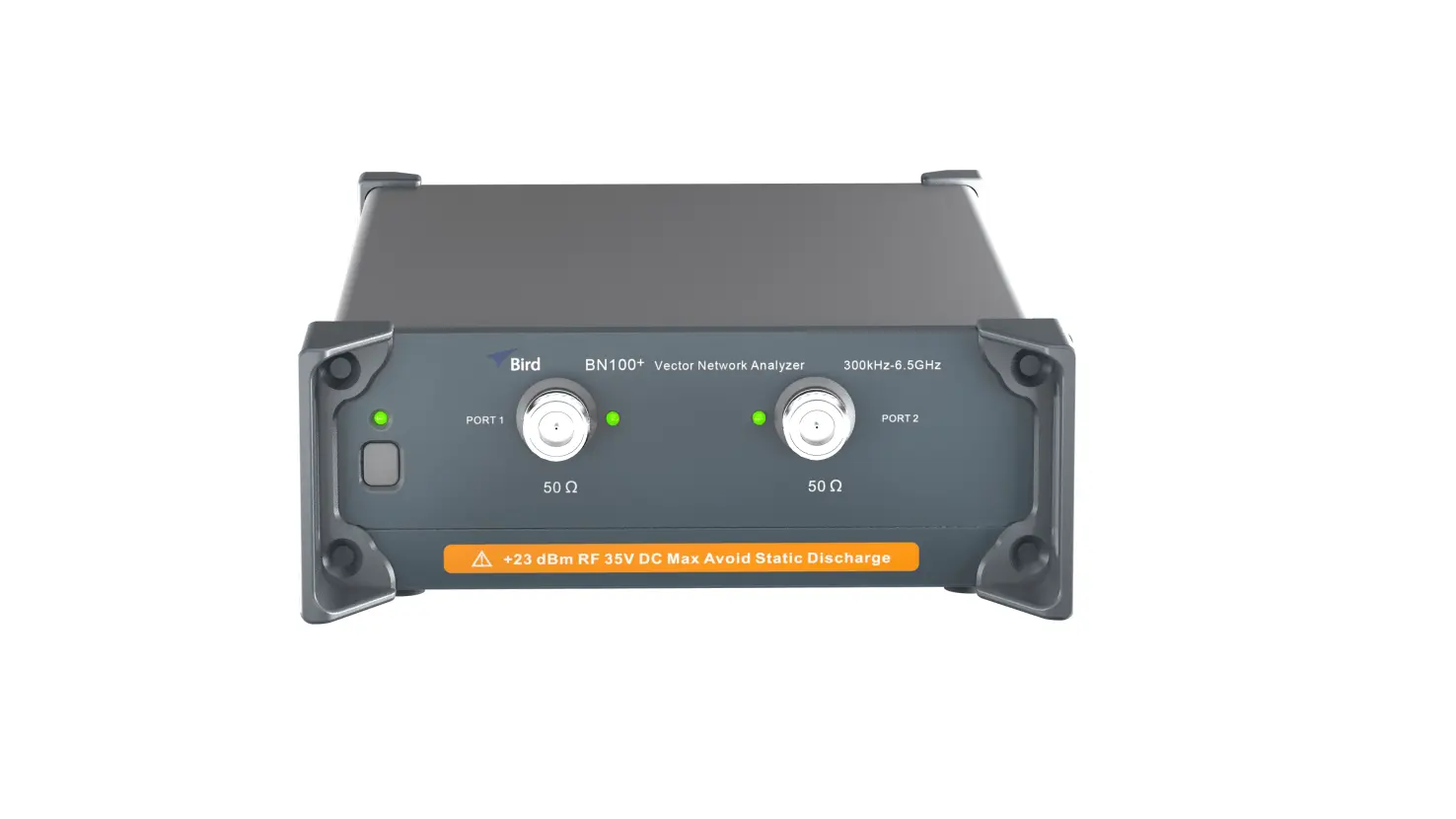

Frequency Range
300KHz - 6.5GHz/8.5GHz
Output Power Range
-20dBm to +10dBm
Measurement parameters
S11 to S22
Measurement point per sweep
2 to 20001
Dynamic range
120dB @ IFBW 10Hz
Low Trace Noise
5mdB rms @IFBW 3kHz
Measurement Speed
68us/point @IFBW 100kHz
Support
Standard Visa

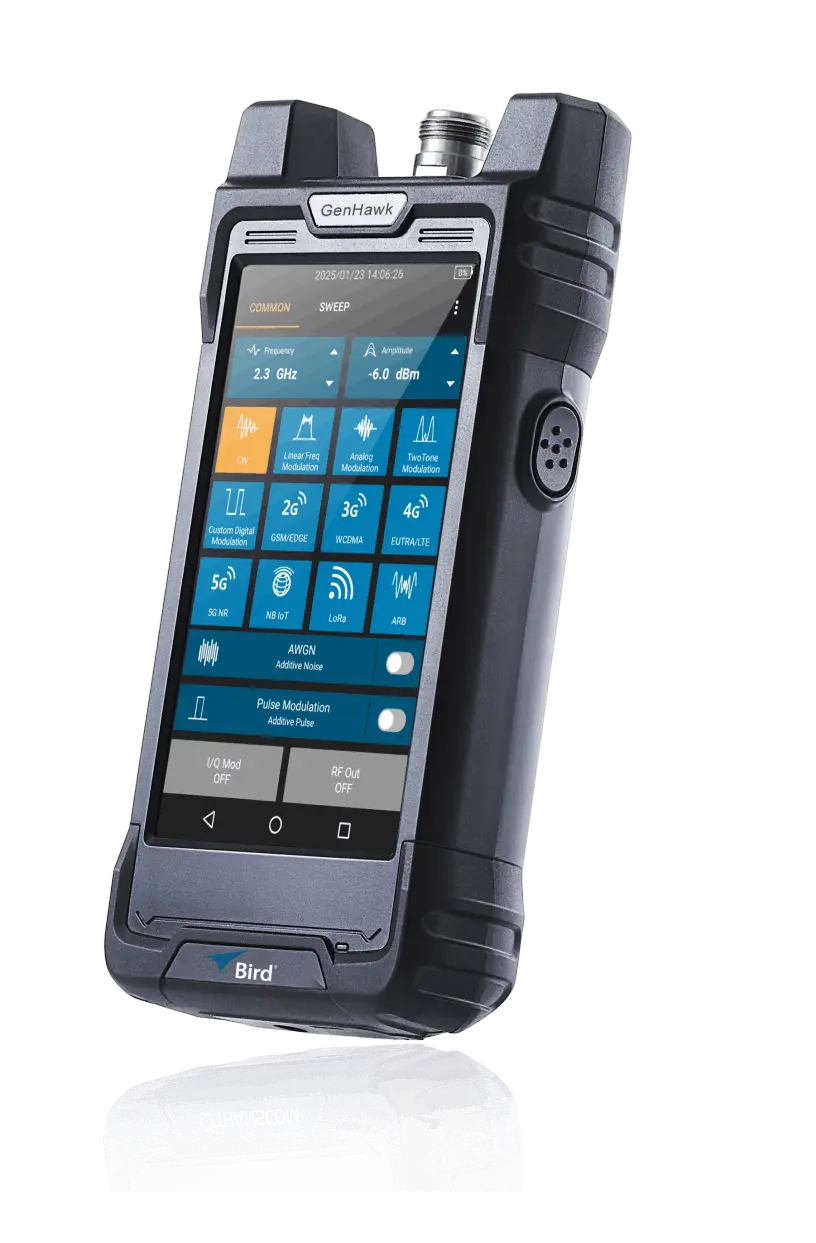

GH60- GeneHawk Handheld Signal Generator
Frequency range
10MHz - 6GHz
Power Range
-130dBm to +15dBm
Modulation bandwidth
20MHz(can upgrade to 100MHz)
Support communication standard signal type
GSM | WCDMA | TDD-LTE | FDD-LTE NB-IoT | LoRa | 5GNR
Digital modulation type
BPSK | QPSK | OQPSK 8PSK | 16QAM | 32QAM 64QAM | 128QAM | 256QAM MSK | FSK
High portability
Small size(197*93*61 mm)，light weight (0.9kg)
The handheld signal generator (GH60) is characterized by its strong portability, making it suitable for on-site testing and convenient to carry during field test. It boasts excellent RF performance, supporting a wide range of general digital modulation formats.

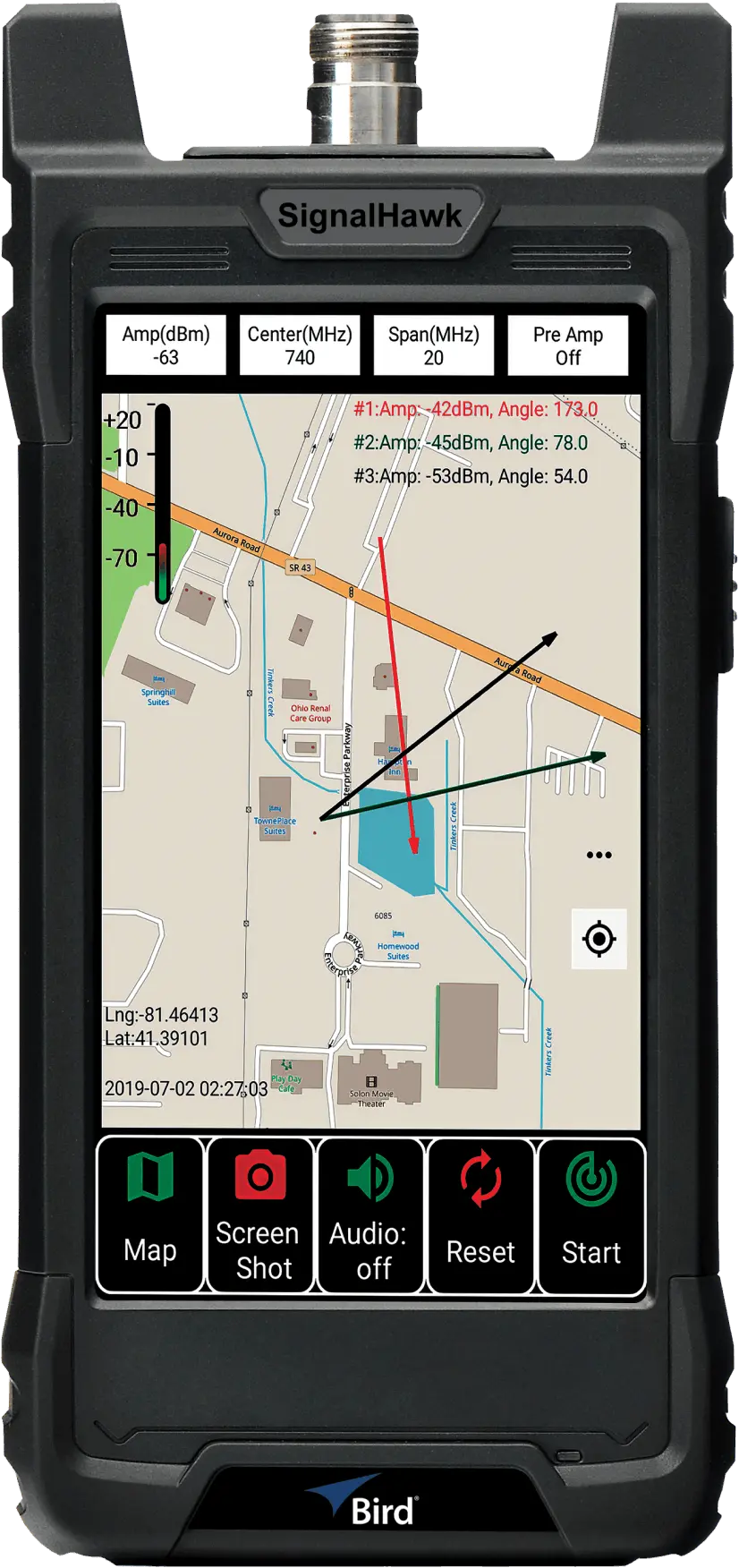

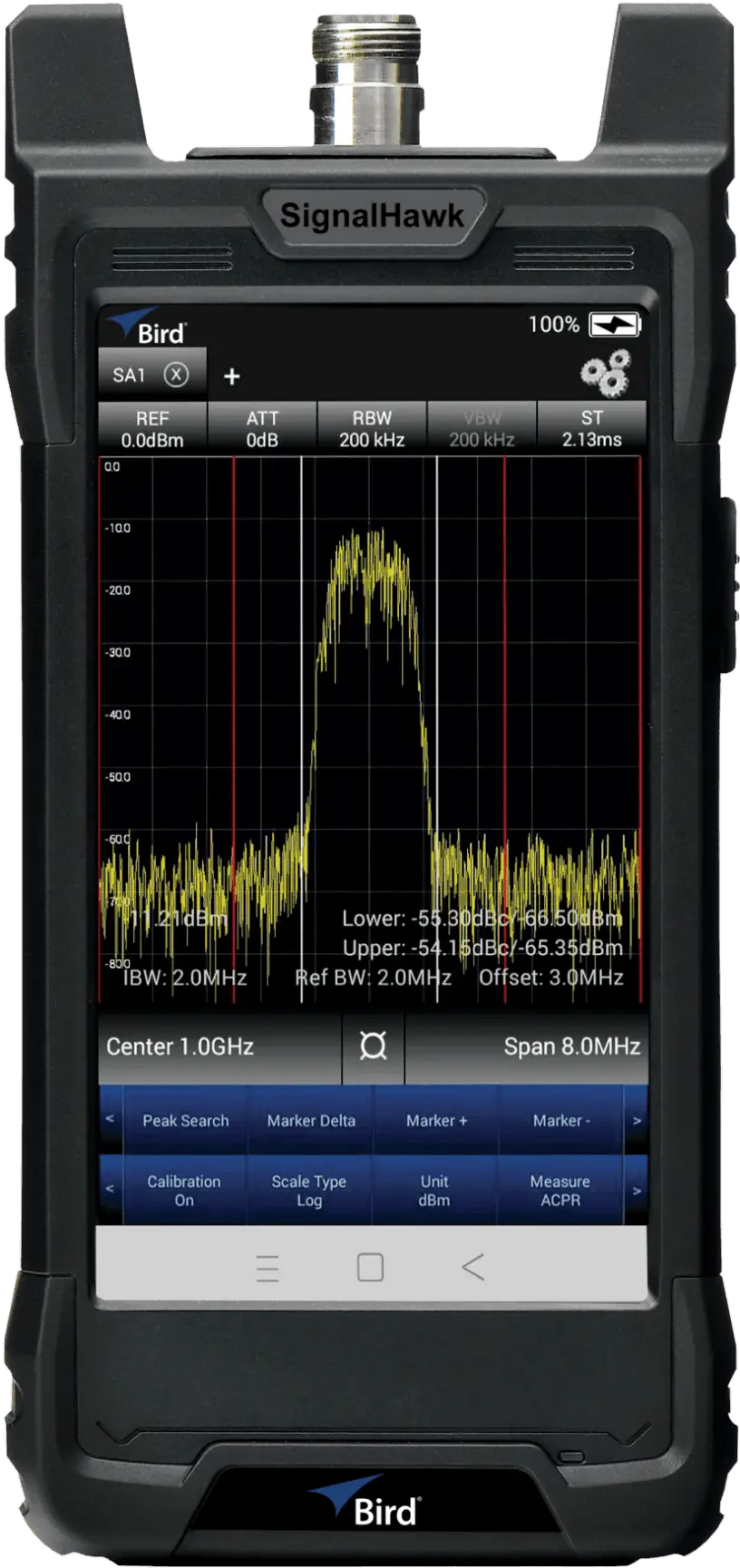

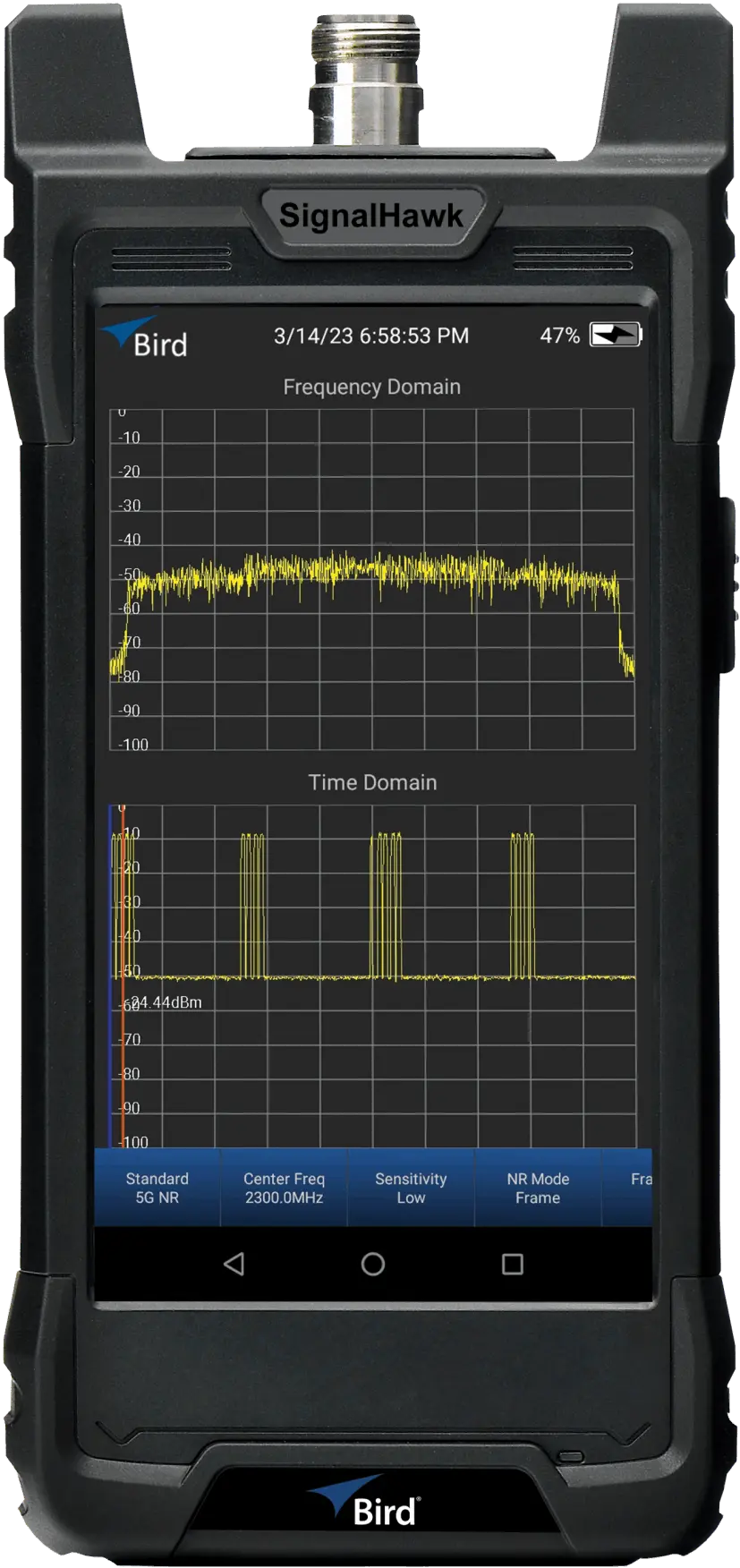

SignalHawk Handheld Spectrum Analyzer
Frequency Range
9 kHz to 6 GHz/7.5GHz
Aging
±1 ppm
Resolution Bandwidth
10 Hz to 5 MHz
Second Harmonic Distortion
1.6 GHz -70 dBc
Third-Order Intercept --TOI
+15 dBm (–10 dBm tones , 1 MHz apart, Preamp Off, Reference Level –10 dBm)
Measurement Range
DANL to +20 dBm
High portability
Small size(197*93*61 mm)，light weight (0.9kg)
The SignalHawk, SH-60S and SH75s, provides real-time spectrum monitoring and analysis of RF frequency circuits with a wide frequency range of between 9kHz to 6 GHz / 7.5GHz. Our analyzer has been developed for field engineers, technicians, wireless equipment manufacturers, service providers, contractors, tower erectors and military field personnel. Bird combines best-in-class functionality with compact package and boasts an intuitive touchscreen user interface.

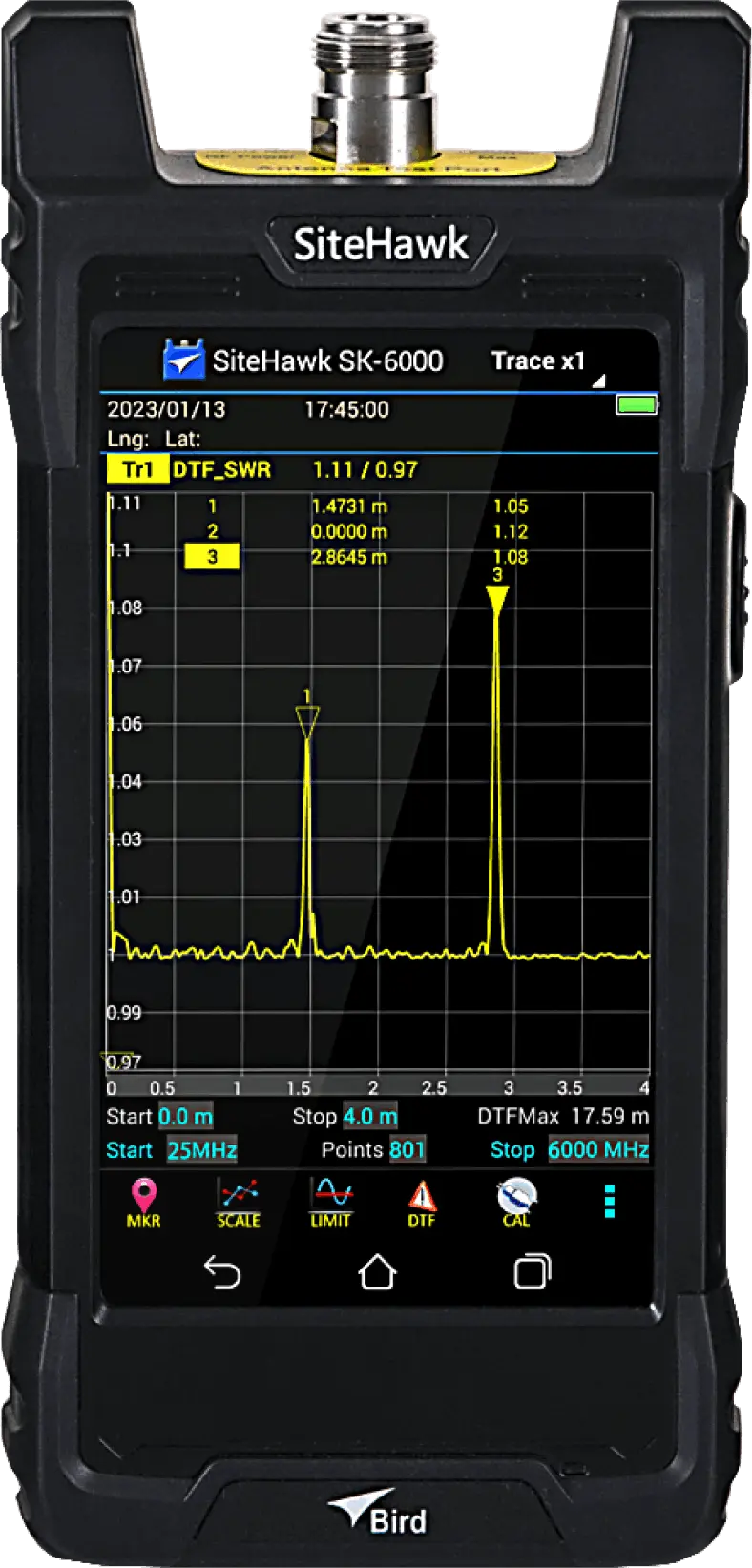

SiteHawk Handheld Cable and Antenna analyzer
Frequency Range
1 – 4500 MHz/6000 MHz/9000 MHz
Output Power
-10 dBm, typical
Trace Noise Magnitude
0.05 dB rms @IFBW 1kHz
Measurement Speed
1 ms / data point @ 51 to 3201 points
Measure Bandwidth
100 Hz to 30 kHz
Return Loss Measurement Range
0 dB to -60 dB
DTF Range
0 to 5000 ft. (0 to 1500 m)
Immunity to Interfering Signals
+13 dBm
High portability
Small size(195*90*60 mm)，light weight (0.9kg)
The SiteHawk™ family of handheld analyzers provide critical coverage with a wide frequency range from 1 MHz to 9 GHz.Discontinuities can be a real problem and cause significant reflections by damaged cables, loose or improperly installed connectors, and environmental factors. With Bird’s DTF (Distance to Fault) mode, SiteHawk™ finds the exact location of the problem “in true distance units”!Eliminate wasted time swapping out components until you determine the issue. Save critical time, components, and money by correctly identifying issues the first time to efficiently direct vital resources to implement solutions.
