WHY ?
OTA NF Power measurement in the production?

Advantages of Near-Field Power measurement Over Wireless Throughput Testing

High Testing Speed

High testing efficiency (less than 5 seconds per antenna)
Simultaneous testing of multiple DUTs (up to 32 DUTs tested concurrently)

Save Testing Space Area

No need for shielding boxes
The fixture occupies a small footprint

Rapid Testing for Assembly Defects at end-product

damaged component
excessive solder
improper insertion
insulation damaged
near short
solder bridge
defective Part
empty Solder
floating Solder
open Solder

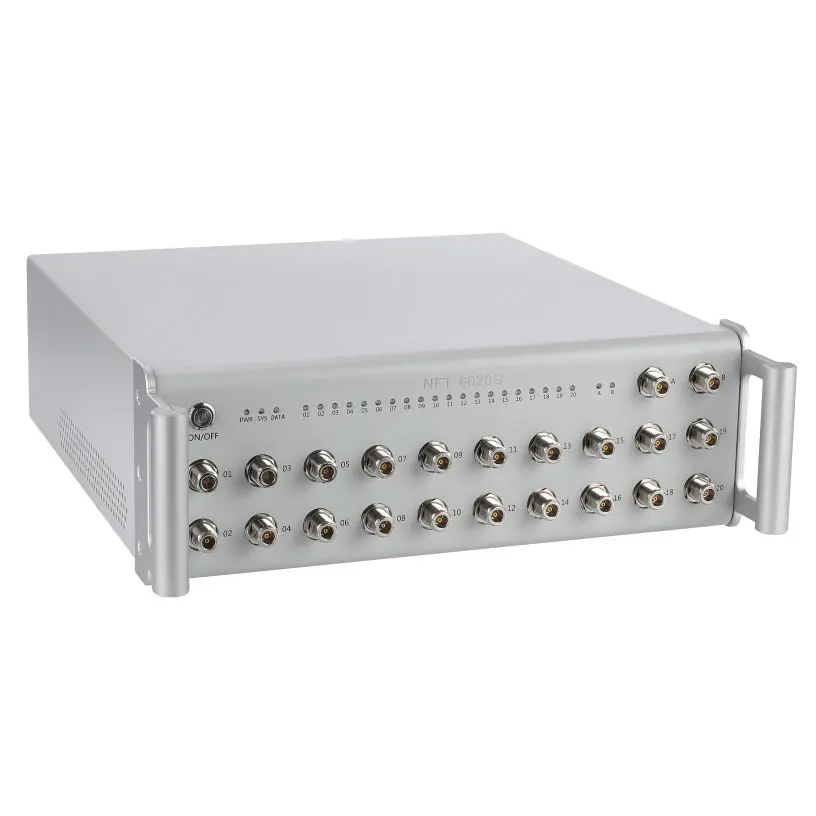

OTA NF Multiport Power measurement
> Frequency 2.4GHz to 2.5GHz, 5GHz to 7.5GHz
> Maximum Input Power +21dBm(CW)
+30dBm (Peak power)
> Support all 802.11x (include WiFi 6E and WiFi 7)
> All 20 RF ports support simultaneous testing
> All 32 RF ports support simultaneous testing

The cost effective
WiFi 7 Production Testing
OTA NF Power Measurement

For WiFi 4 , 5 , 6 , 6E and 7
Utilizing true RF POWER RMS responsive detection technology, OTA NF testing aims to precisely measure the power of both continuous waveforms and modulated signals. This method involves instruments equipped with 8 to 20 RF ports, facilitating the verification of wireless device (DUT) performance in high-volume manufacturing scenarios.

Reduced costs

Shorter
manufacturing time

Rapid technological improvement

New operating models
