Unleash the Power of 5G FR1 &mmWave Testing

Dive into the future of connectivity with our advanced 5G FR1/FR2 mmWave testing solution.

Antenna in Package

1. mmWave need to take over-the-air (OTA) testing
2. 2 x 2 MIMO

mmWave antenna size

1. One antenna panel with D <= 5 cm
    Direct far field (DFF)
    -- OTA Box --
2. Any phase coherent antenna panel
    Indirect far field (IFF)
    -- Compact Antenna Test Range , CATR --

Cost

- Testing Time
- Testing System Cost
Mobirise Website Builder

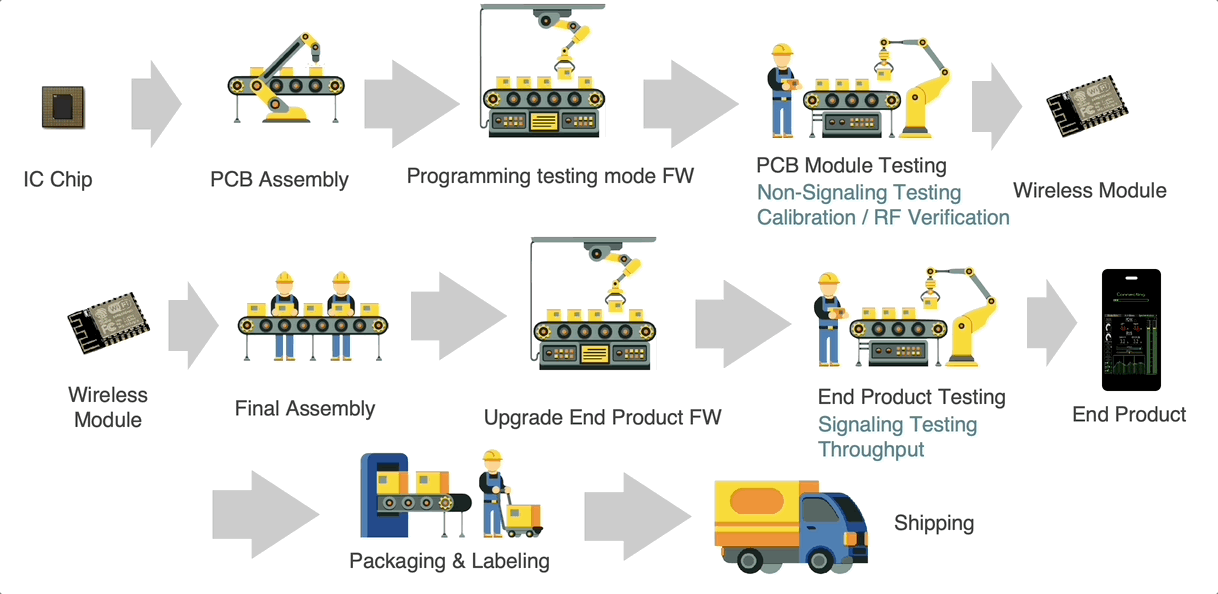

Production Flow

Non-Signaling
and Signaling Solutions

With non-signaling testing, we enable manufacturers to conduct rigorous assessments of device functionality and performance without the need for active network connections. This empowers efficient and cost-effective testing, ensuring that every device meets the highest standards of quality and reliability.

In parallel, our signaling testing solution enables real-time validation of device behavior within live network environments. By simulating network conditions and signaling interactions, manufacturers can validate device functionality and interoperability, guaranteeing seamless integration into 5G networks.

Mobile Protocol Stack

Mobirise Website Builder

Signaling Testing
VS
Non-Signaling Testing

Signaling UE Testing

Mobirise Website Builder

LTE + 5G NR Signaling testing

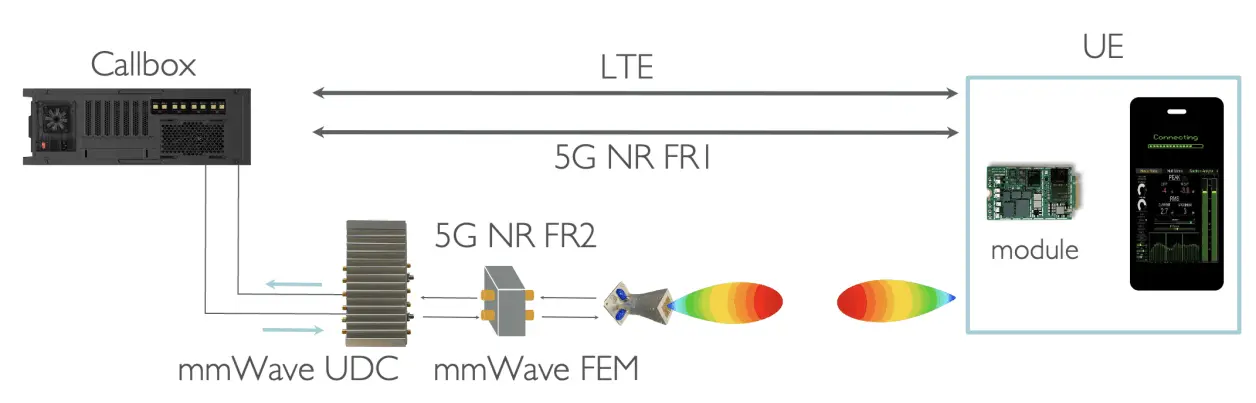

FR1 / FR2

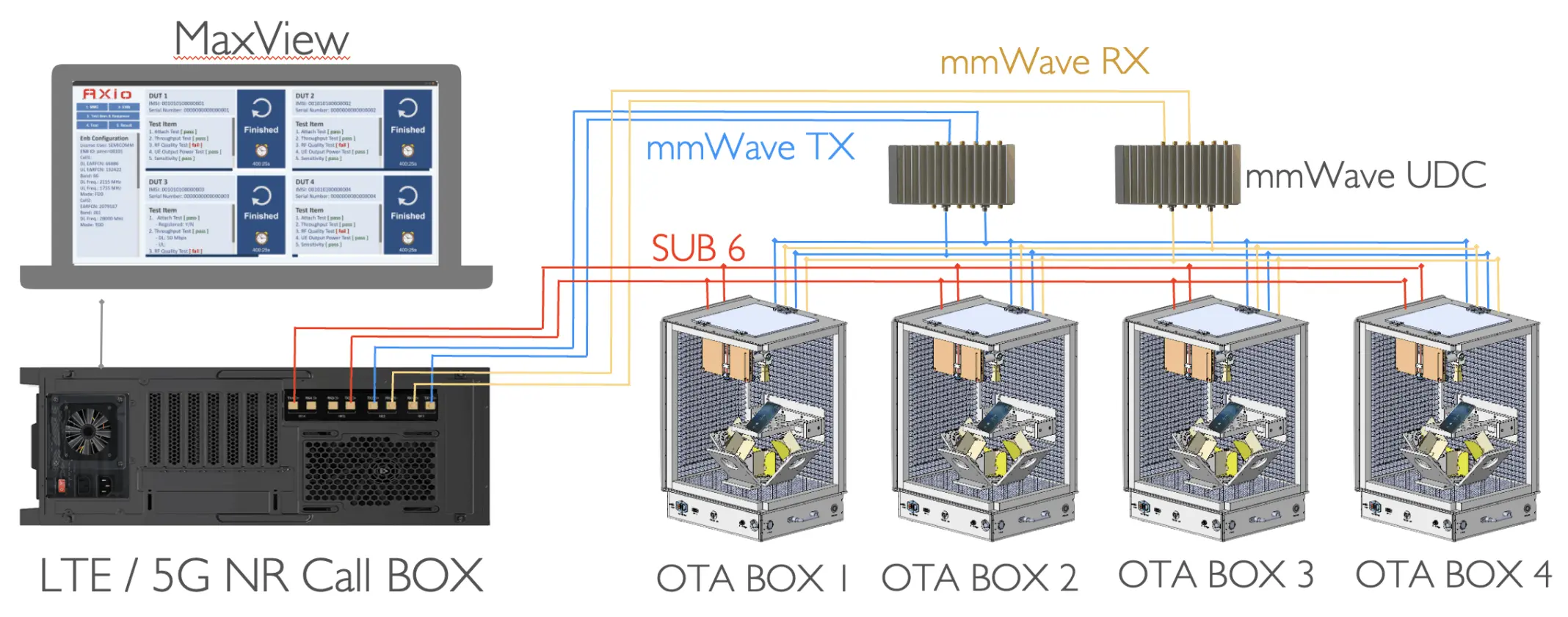

MultiDut Testing in Production

Mobirise Website Builder
Mobirise Website Builder

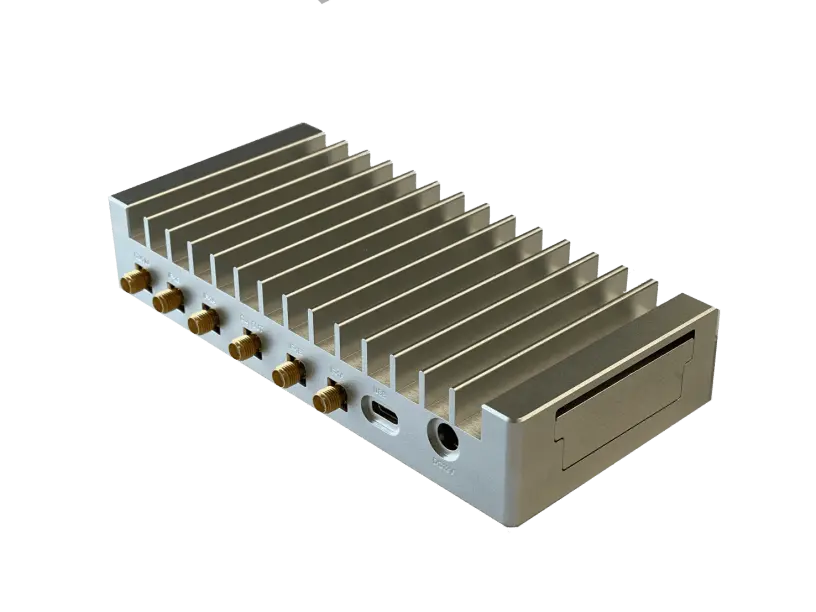

28GHz / 39GHz Up/Down Converter

UDC28-42B
2.6GHz~5.8GHz to 24~30GHz
UDC39-42B
3.3GHz~6.7GHz to 37~40GHz

Mobirise Website Builder

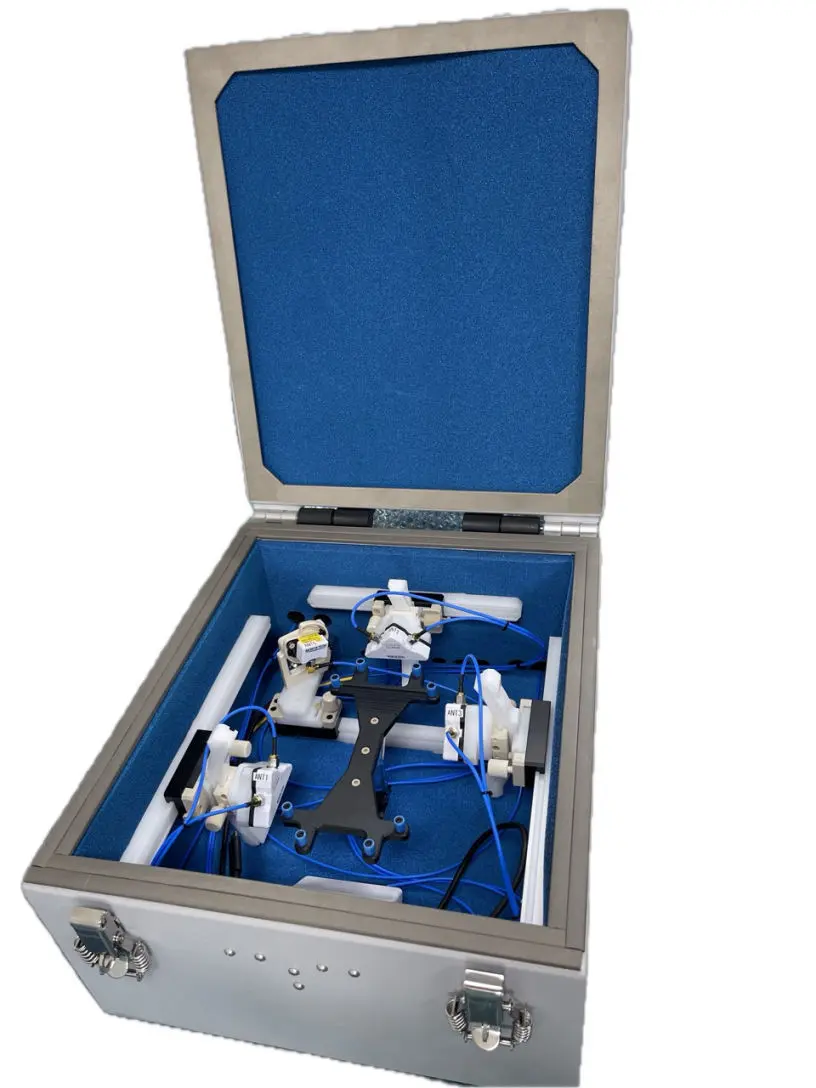

OTA BOX - Coupler antenna

One antenna panel with D≤5 cm active at any one time

Three type of sizes or customization box
Shielding performance
26.5GHz to 44GHz > 75dB
Include filter , RJ45 connector x 2 , RS232 connector x 1

Mobirise Website Builder

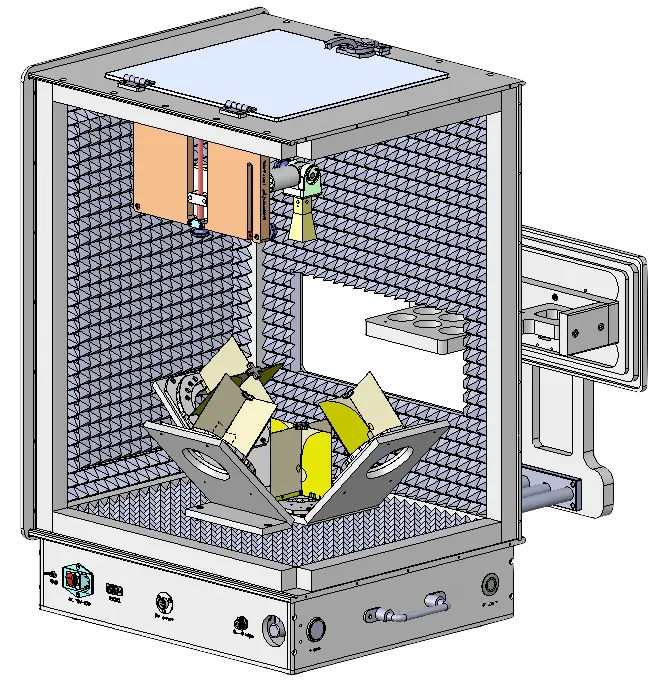

OTA BOX - Vivaldi + horn antenna

One antenna panel with D≤5 cm active at any one time

Three type of sizes or customization box
Shielding performance
26.5GHz to 44GHz > 75dB
Include filter , RJ45 connector x 2 , RS232 connector x 1

Mobirise Website Builder

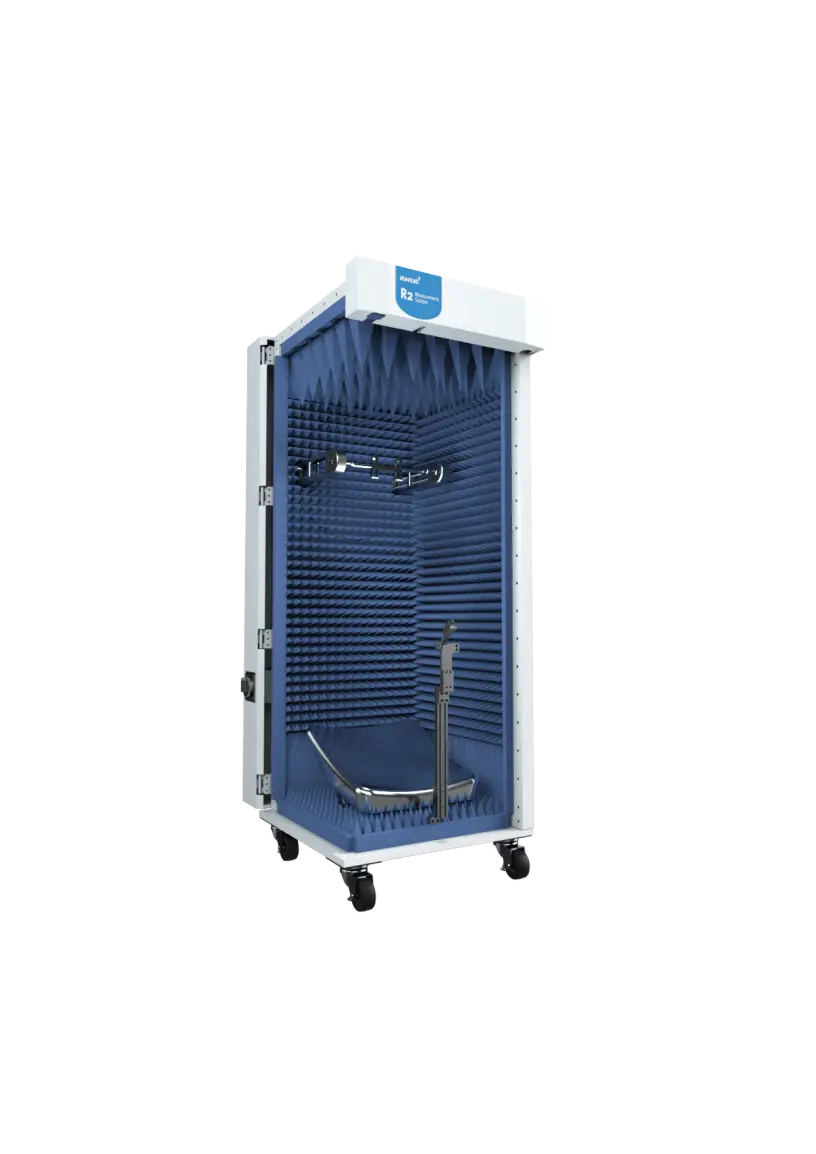

Compact Antenna Test Range CATR

Any phase coherent antenna panel ≤ 30cm

Frequency Range 18 - 90 GHz
Quiet Zone 30cm
Dual Polarization Feed Horn
18 ~ 26.5GHz
24 ~ 42 GHz
40 ~ 60 GHz
60 ~ 90 GHz

Mobirise Website Builder

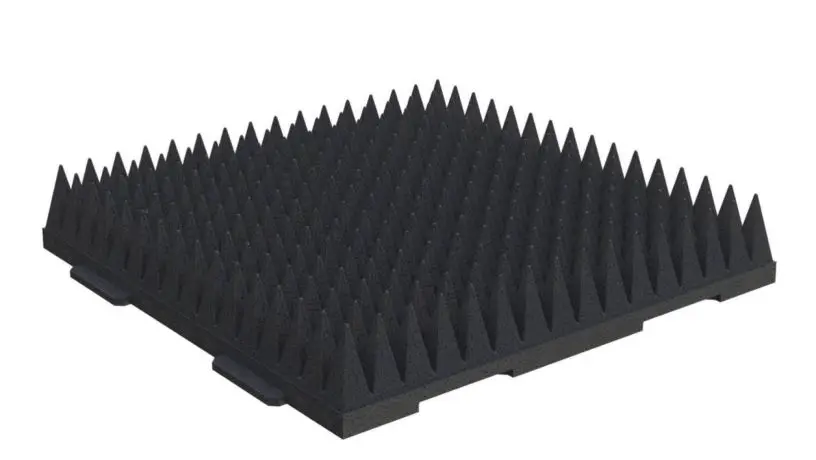

Absorber

Dimension 30 x 30 cm , 60 x 60 cm
Frequency 0.3GHz ~ 40GHz , 6 types
Expanded Polypropylene (EPP) material to address the shortcomings of traditional absorbent materials, such as susceptibility to water absorption and dust collection

Drag & Drop Website Builder
